VFD Panel

“Intelligent Variable Frequency Drive Panels for Precision Motor Control”

VFD Panel

Notable Implementations

Industrial Variable Frequency Drive Panel

Energy Efficient Motor Speed Control System

PLC Integrated VFD Automation Panel

Project Overview

Variable Frequency Drive (VFD) Panel – An advanced motor control solution designed to regulate AC motor speed, torque, and direction with maximum efficiency. Integrated with PLC, HMI, SCADA, and industrial communication protocols, the panel ensures smooth motor operation, reduced energy consumption, enhanced process automation, and comprehensive motor protection for pumps, fans, compressors, conveyors, mixers, and other industrial equipment.

Key Features

Motor Speed Control

Variable Speed ControlFrequency AdjustmentSoft Start & StopAcceleration & Deceleration ControlForward / Reverse OperationTorque ControlConstant Speed OperationMulti-Speed Selection

PLC Automation

PLC-Based Drive ControlAutomatic Process ControlSequential Motor OperationAuto / Manual ModeRemote I/O IntegrationInterlocking LogicEquipment SynchronizationCustom PLC Programming

HMI Operator Interface

Touch Screen HMISpeed MonitoringDrive Status DisplayParameter ConfigurationAlarm AcknowledgementManual Speed AdjustmentSystem DiagnosticsUser Access Control

SCADA Integration

Remote MonitoringCentralized Drive ControlReal-Time Speed MonitoringHistorical Data LoggingAlarm ManagementTrend AnalysisEvent LoggingProduction Reports

Drive Monitoring

Output Frequency MonitoringMotor Current MonitoringVoltage MonitoringPower Consumption AnalysisDrive Health MonitoringRuntime MonitoringLoad MonitoringEfficiency Optimization

Motor Protection

Overload ProtectionShort Circuit ProtectionOver Current ProtectionOver / Under Voltage ProtectionPhase Loss ProtectionOver Temperature ProtectionGround Fault ProtectionMotor Thermal Protection

Communication & Networking

Modbus RTUModbus TCP/IPPROFINETEthernet/IPProfibusRemote DiagnosticsSCADA ConnectivityIndustrial Ethernet

Safety & Alarm Management

Emergency StopDrive Fault DetectionTrip IndicationFault LoggingAlarm NotificationsSafety InterlocksEvent HistorySystem Health Monitoring

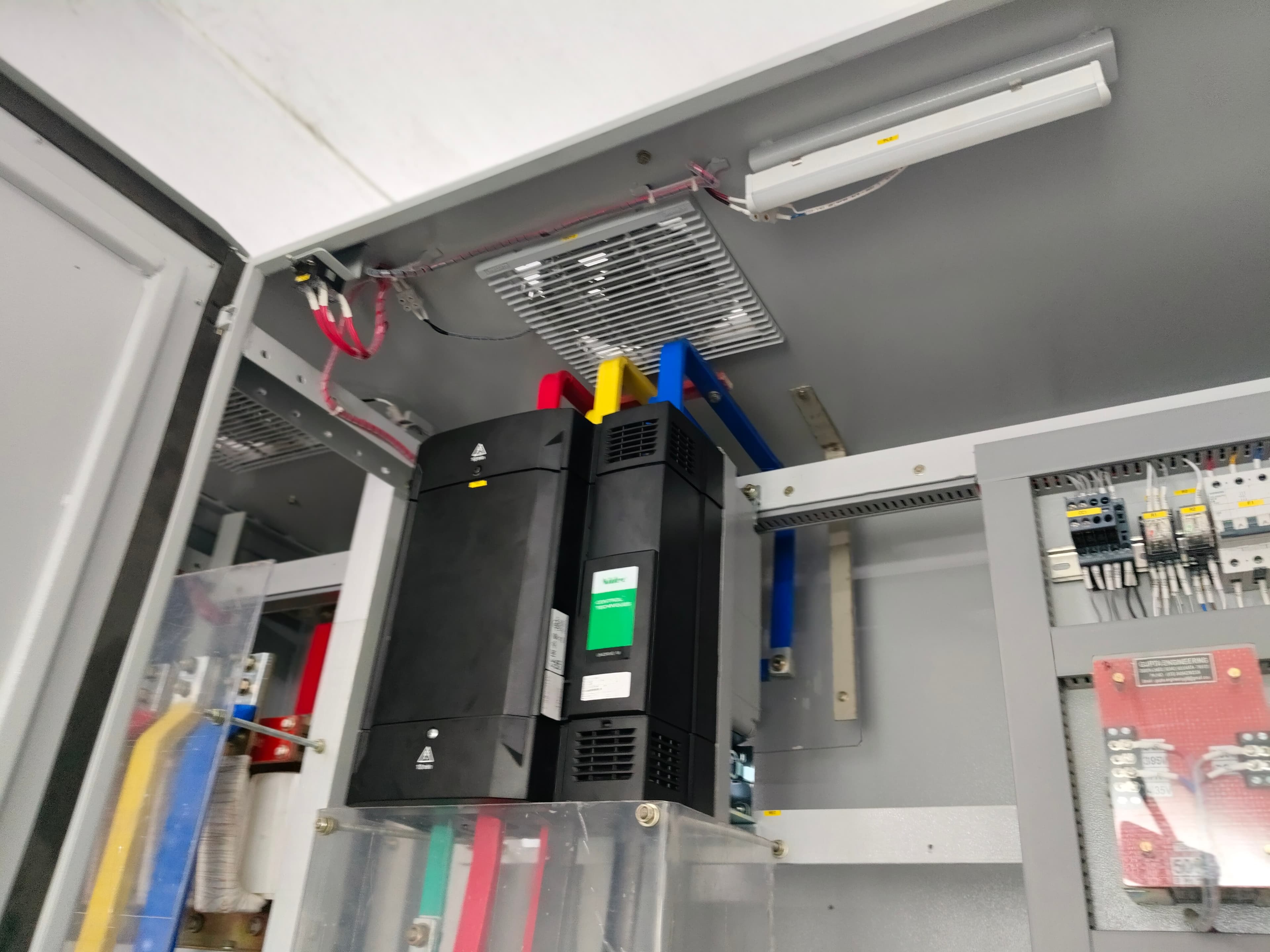

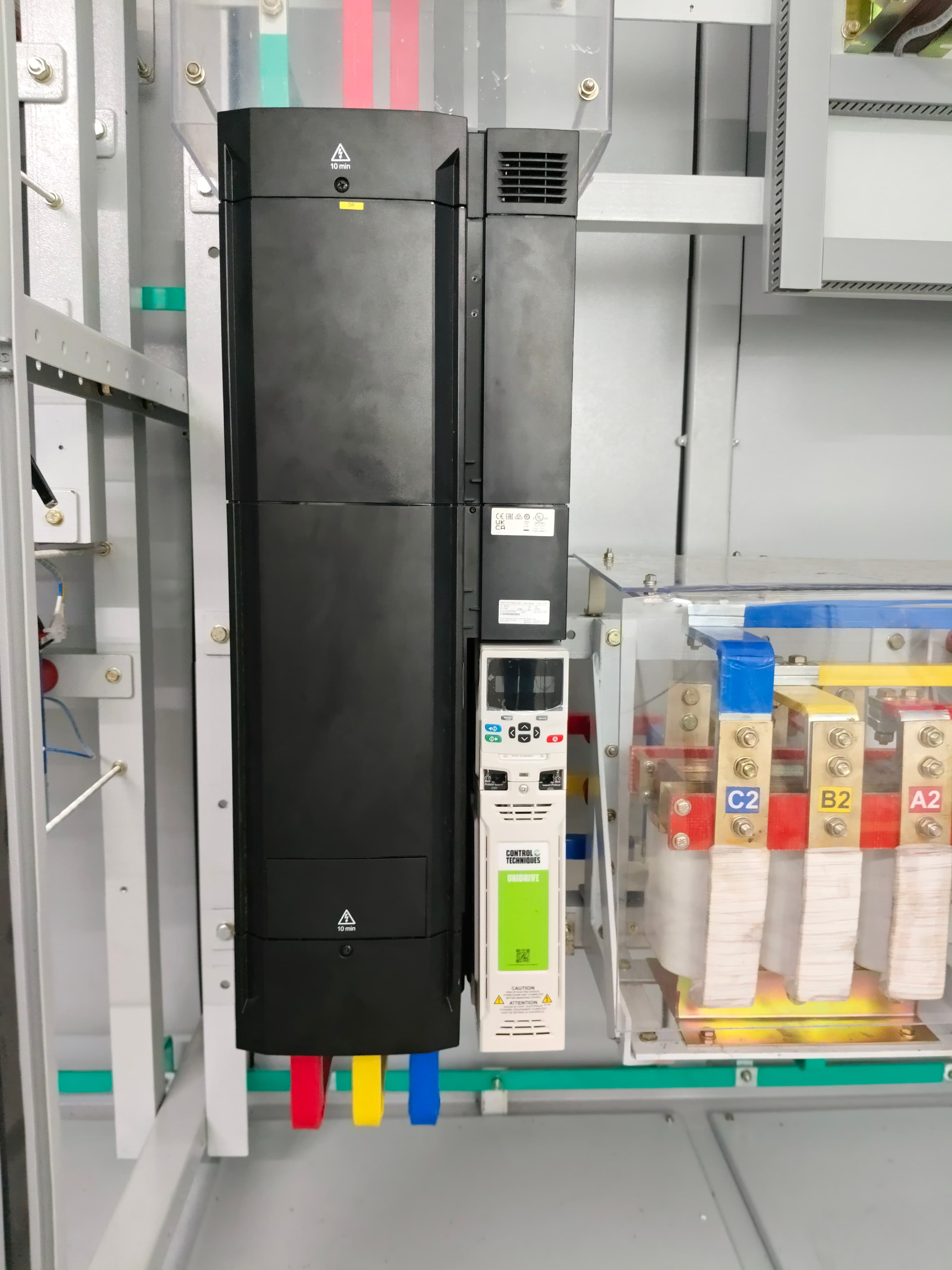

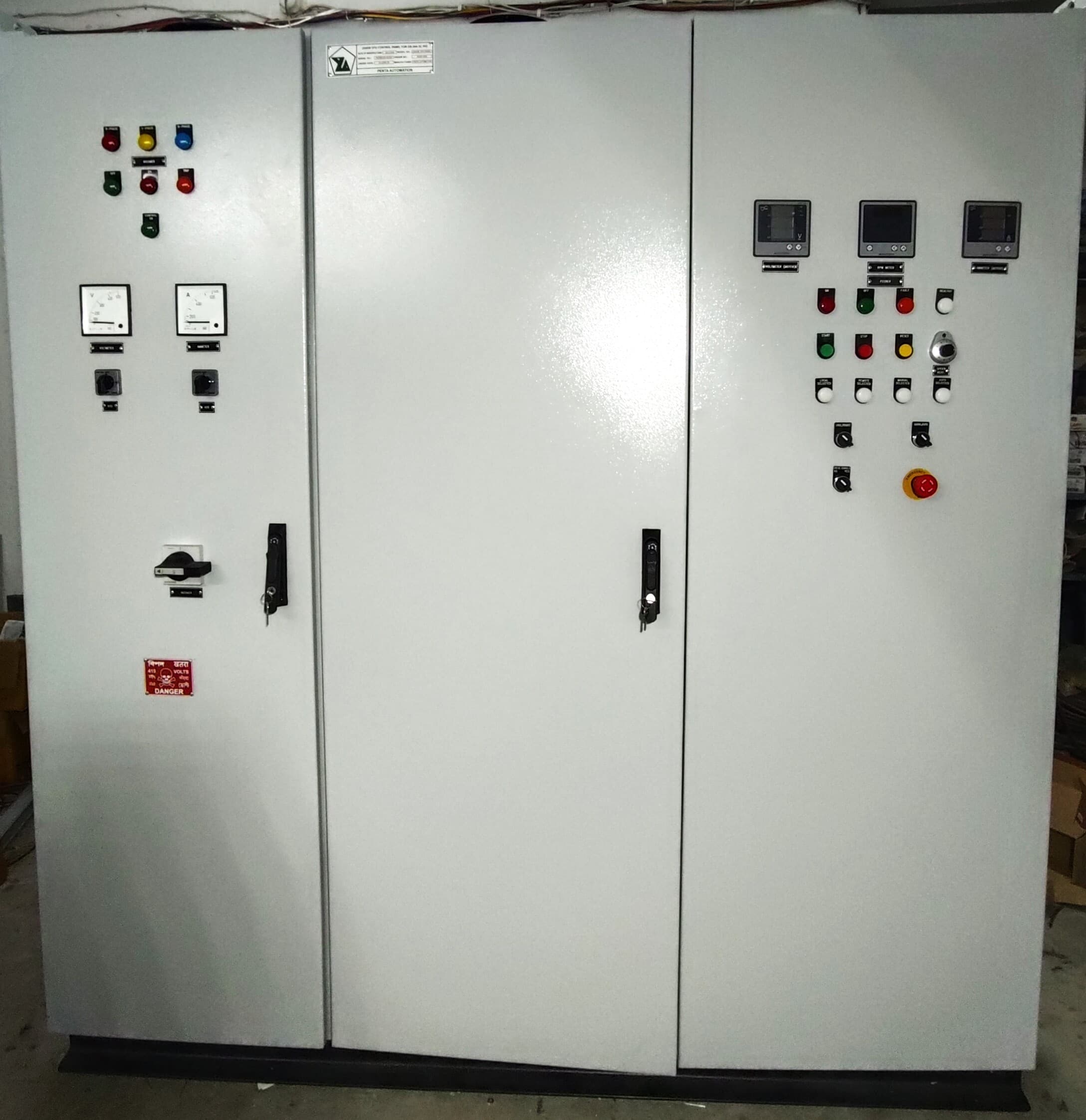

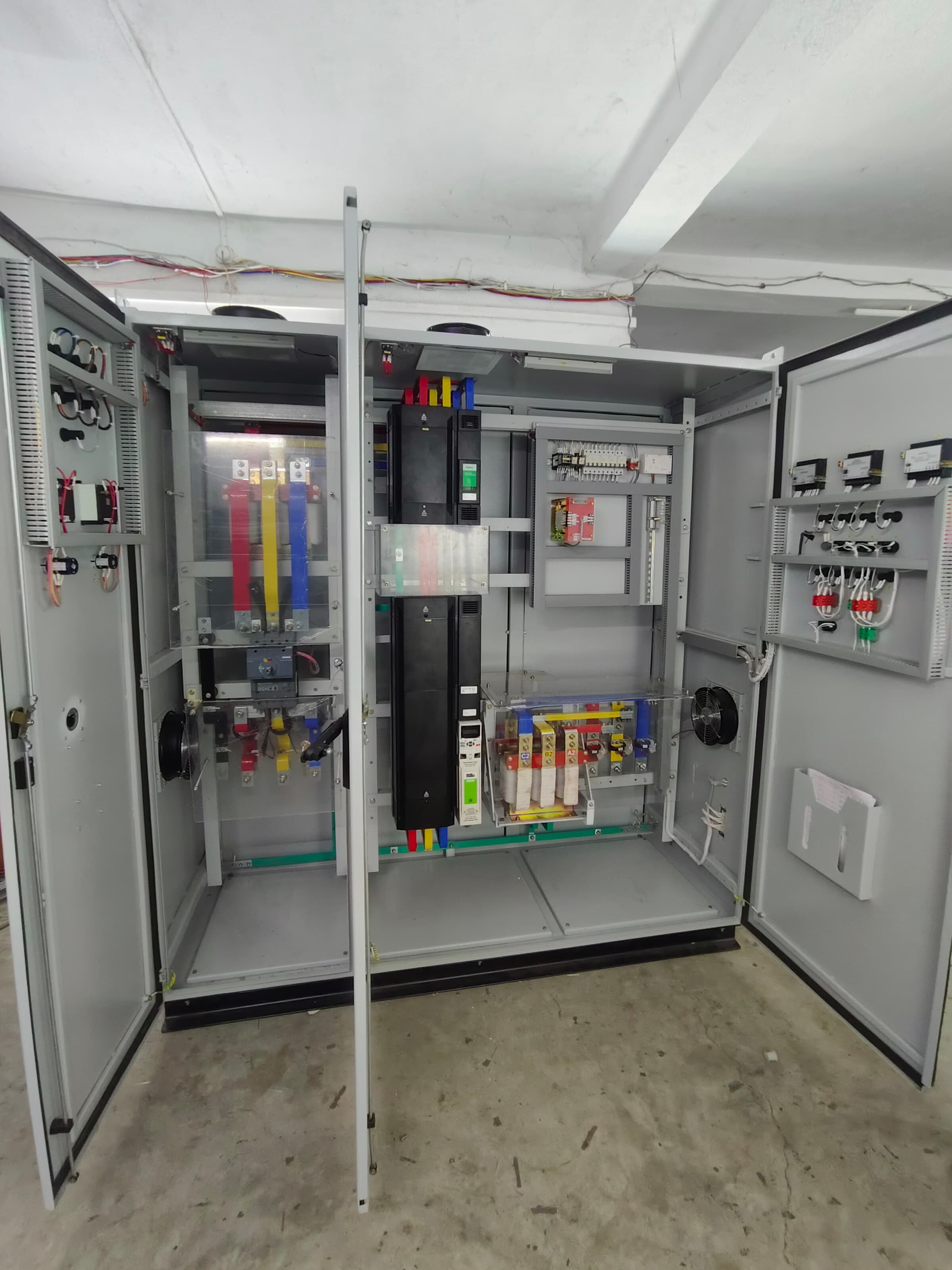

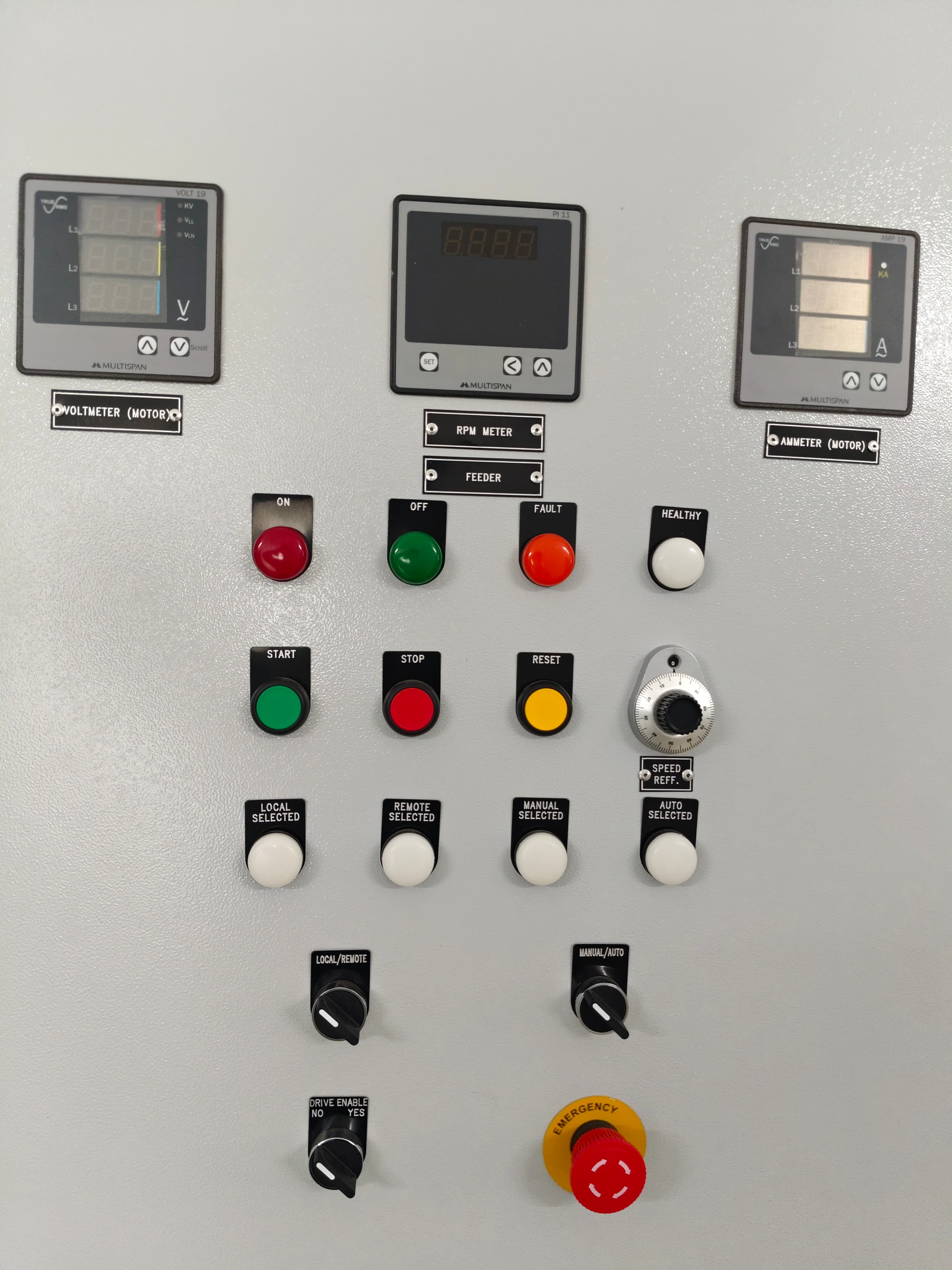

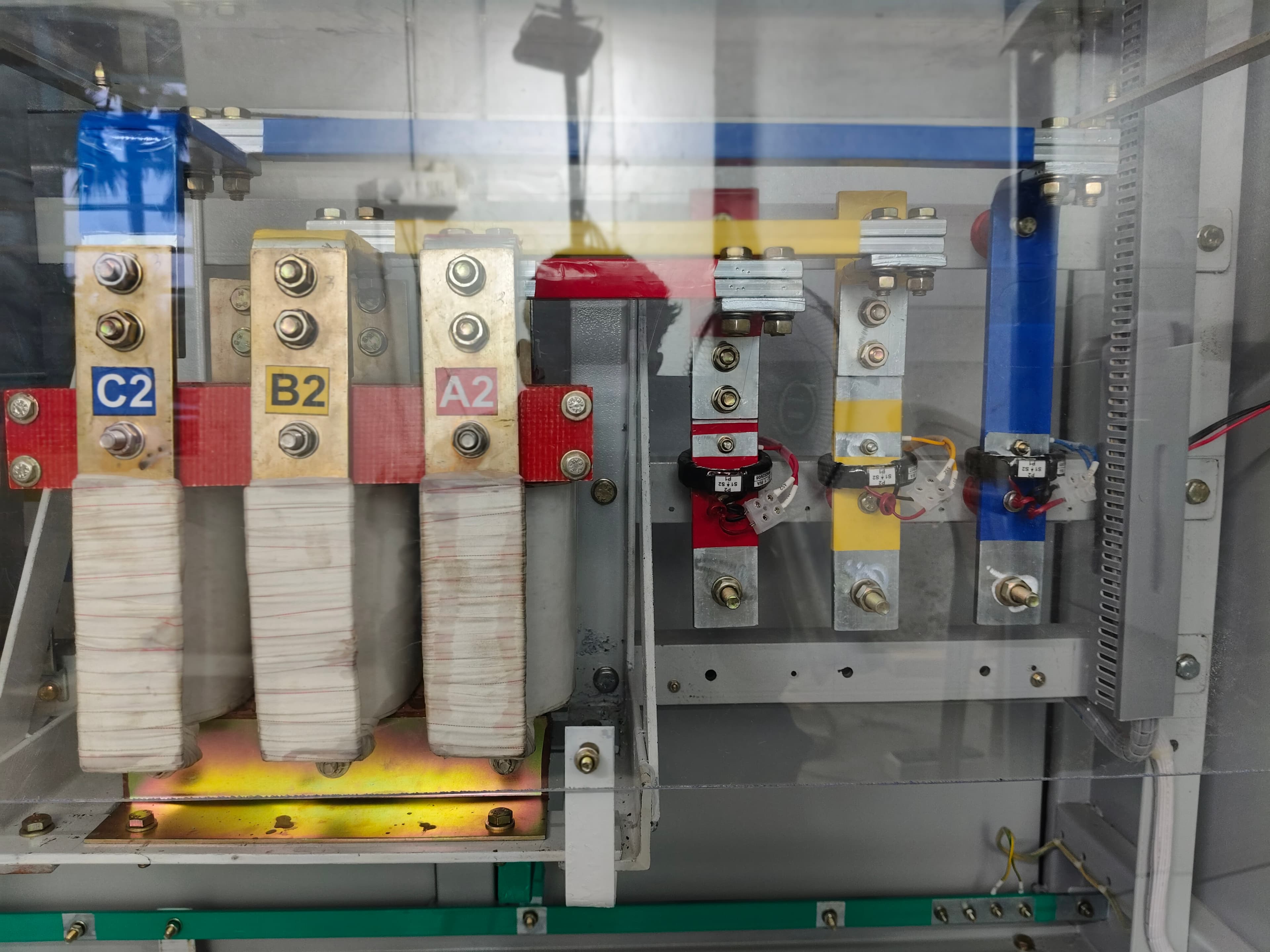

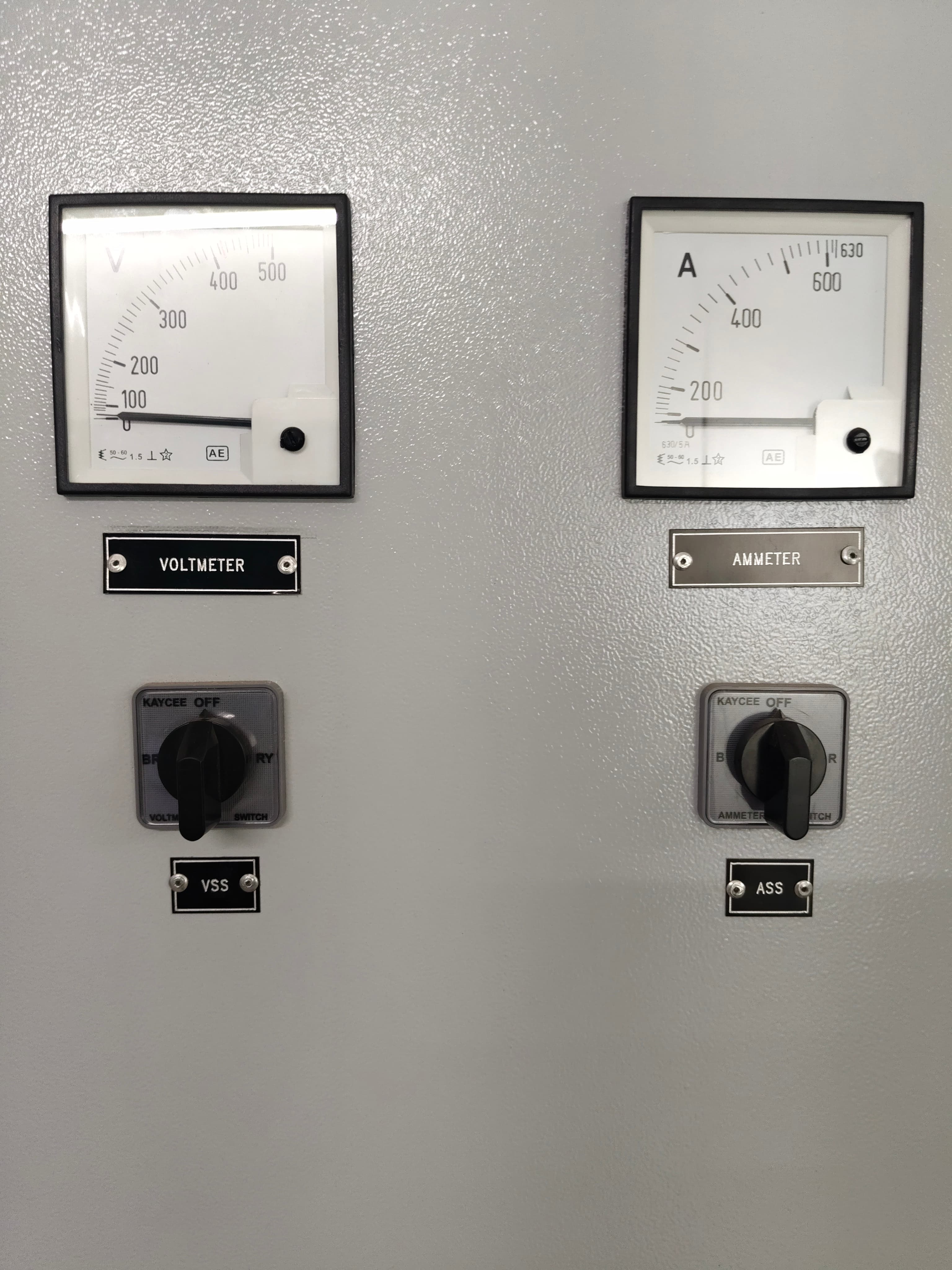

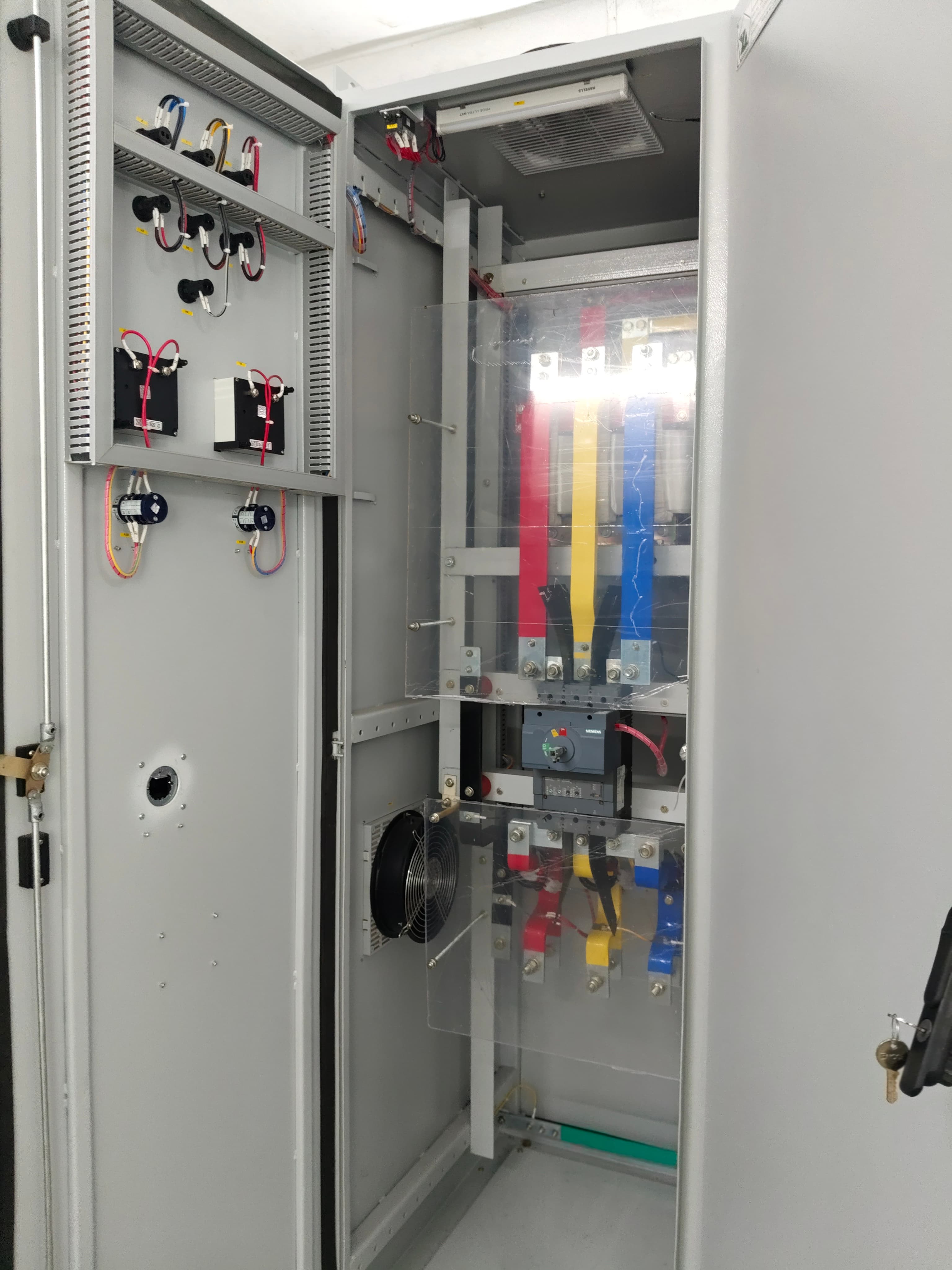

Photo Gallery

WHY PENTA AUTOMATION

Smart Automation. Reliable Execution. Measurable Results.

At Penta Automation, we combine engineering expertise, advanced industrial technologies, and execution excellence to help industries improve productivity, reduce downtime, and achieve sustainable growth.

Industry Expertise

14+ years of delivering reliable industrial automation solutions.

End-to-End Execution

Complete design, manufacturing, integration, and support under one roof.

Customized Engineering

Tailored automation systems built around your business needs.

Industry 4.0 Ready

Smart technologies with PLC, SCADA, IoT, and connected manufacturing.

Quality & Timely Delivery

Precision engineering with dependable execution and fast deployment.

Long-Term Partnership

Continuous technical support and optimization for sustainable growth.

Start Your Automation Journey

Power Your Next Project with Penta Automation

Accelerate productivity and transform operations with intelligent industrial automation, smart factory solutions, and advanced robotics integration tailored to your business goals.
